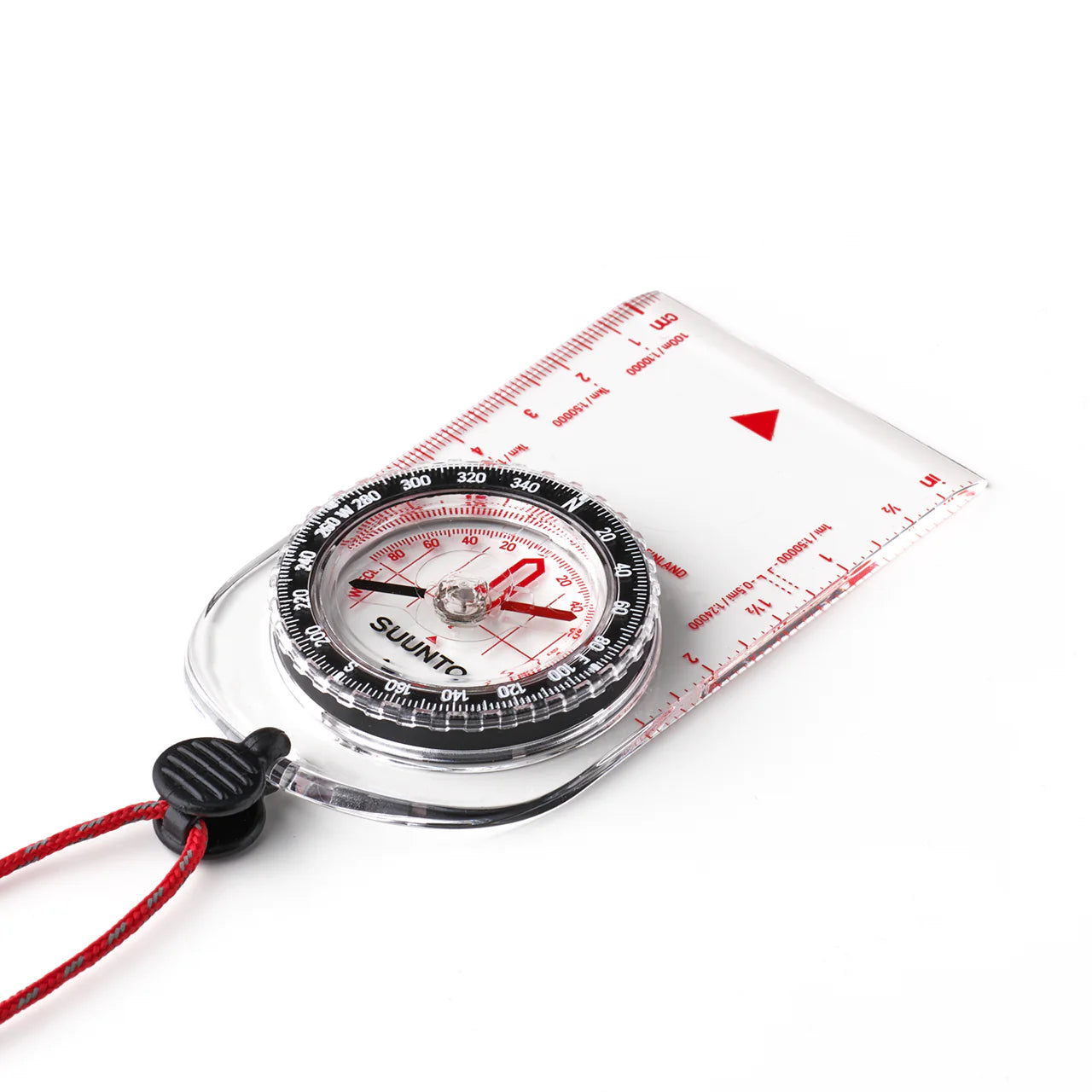

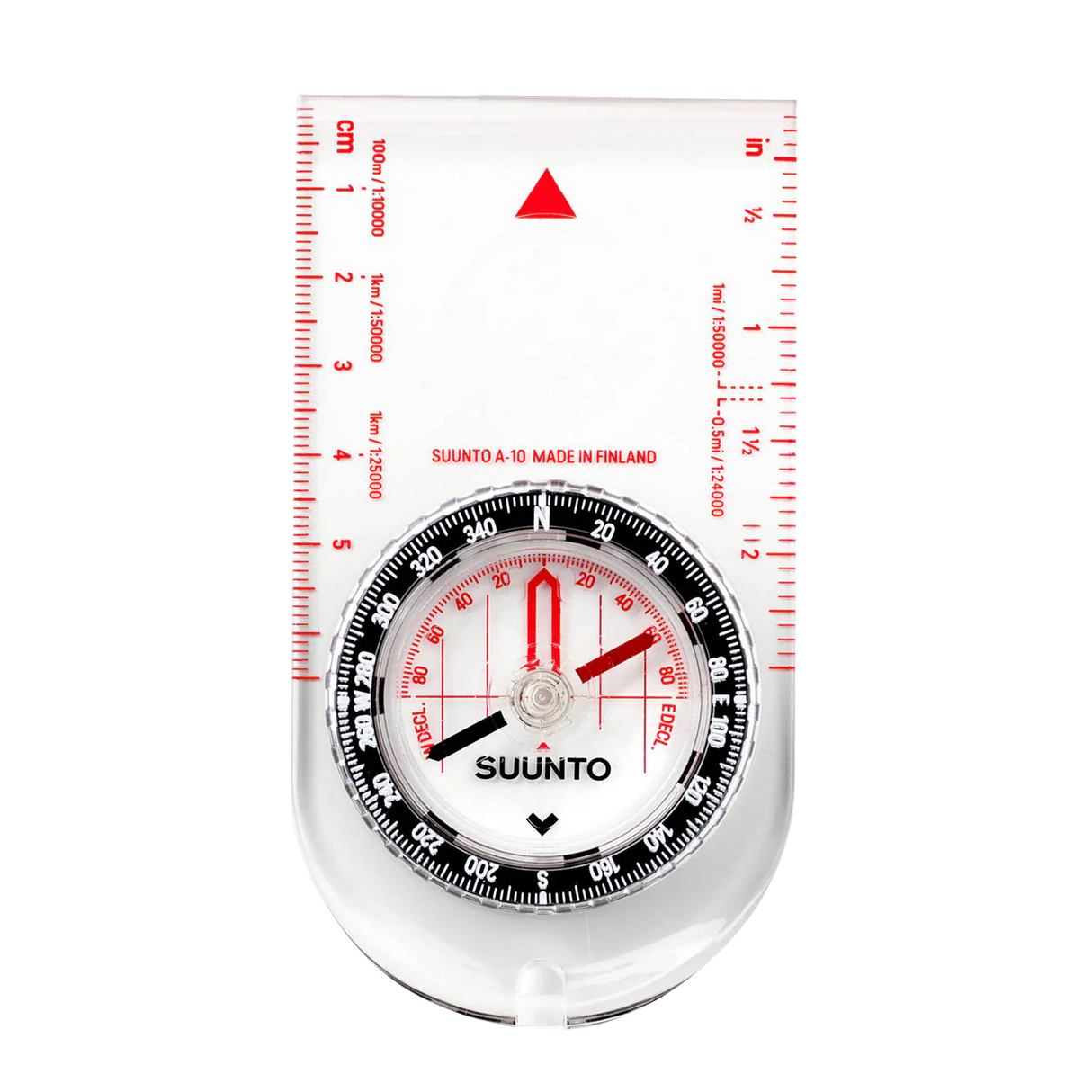

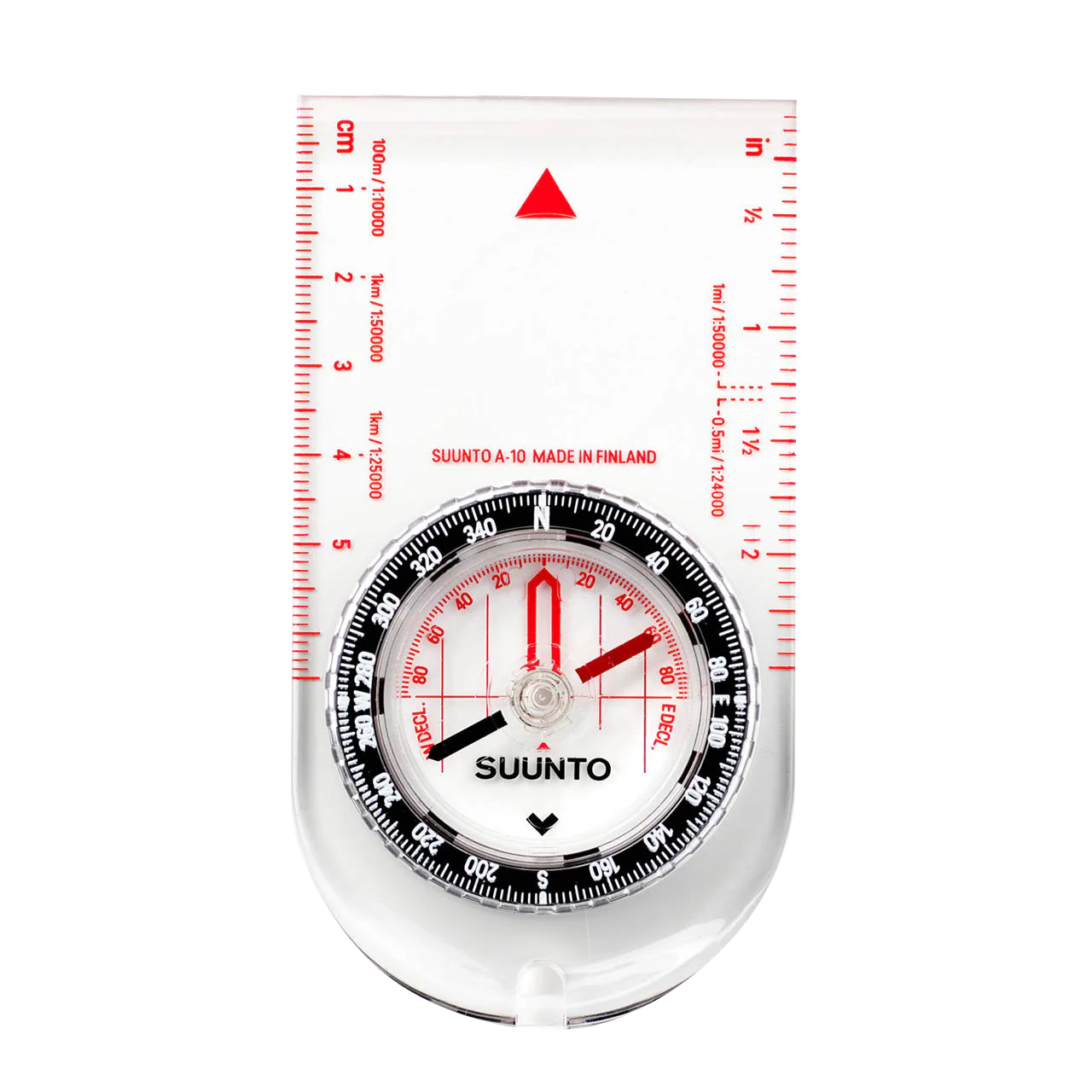

Suunto A-10 SH Compass

Minimalistic Baseplate Compass For Hikers And Scouts

Fast, simple and accurate, A-10 baseplate compasses are quick to learn and ideal for navigating with a map and compass. For calculating the distances, A-10 has both metric and empirical scales printed in red to stand out on topographic map.

The Earth’s magnetic field does not flow evenly between the magnetic poles along the surface of the planet. To overcome this, A-10 has two variants with needles balanced for either the northern or southern hemisphere.

Stable Operation
The compass liquid used by Suunto is specially formulated to provide damping over a large temperature range while preventing the needle from sticking.

Detachable Snap-Lock Lanyard
The lanyard with wristlock is easy to detach for working with a map.

Made In Finland
All Suunto compasses are handcrafted at a factory with 100% renewable energy.

A robust, easy to use compact compass for general recreational use.

• High grade steel needle with jewel bearing
• Exceptionally stable & fast needle
• Fixed declination correction scale
• Balanced for northern hemisphere
• Detachable snap-lock lanyard
• Made in Finland
• Limited lifetime warranty
• Exceptionally stable & fast needle

Specifications

Measurements
56 x 104 x 10 mm / 2.2 x 4.09 x 0.39 "

Weight
30 g / 1.06 oz

Bezel Materials
Plastic

What's In The Box?
Suunto A-10 NH Compass, lanyard, Quickrelease, Quick Guide

Country Of Manufacture
Finland

Technical Specifications

General

Bezel Materials
Plastic

Metric Scales
Cm with distance helpers

Imperial Scales
Inch with distance helpers

Declination Correction
Fixed scale

Balanced For Southern Hemisphere
✔

Weight
30 g / 1.06 oz

Water Resistance
Insensitive to water pressure

Battery Type
No battery required

Lanyard Quick Release
✔

Attachment
Lanyard

Physical Specifications

Operating Temperature
-30° C to +60° C / -22° F to +140° F

Storage Temperature
-30° C to +60° C / -22° F to +140° F

Compass

Direction Scale
Degrees

Needle
High grade steel

Bearing Lock With Orienting Indicator
✔

Liquid Filled And Jewel Bearing
✔

Compass Accuracy
2.5°

Compass Resolution
2°
